Plan: 98489 VANGUARD

Details |  Save | See Reverse | 3D | Modify | Back to Search

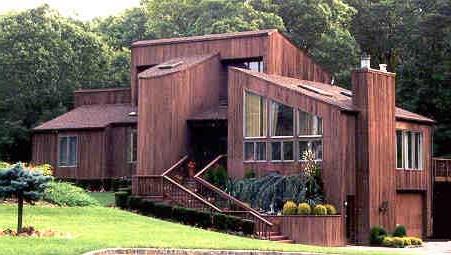

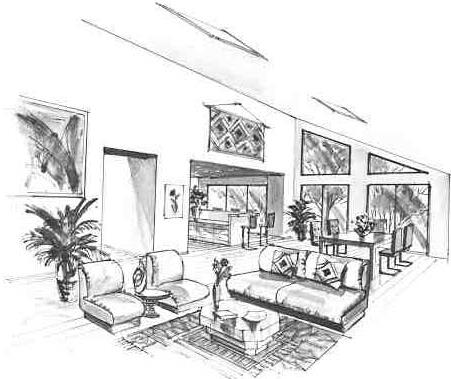

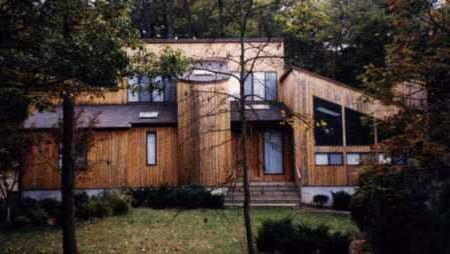

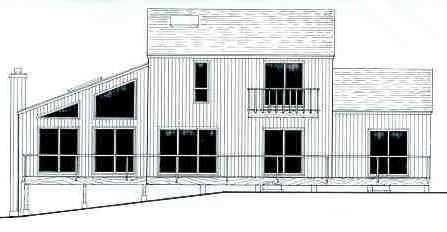

Front Photo #1 Front Rendering Rear Elevation Great Room Front Photo #2 First Floor Plan Second Floor Plan Basement Floor Plan
See all 8 photos and rear view
Photographs may reflect modified homes
© copyright by designer
Plan Specification
Total Square Footage: 2,045
Main Level: 1,560
Second Level: 485
Bedrooms: 4
Baths: 2 Half: 0
Garages: 2
Width/Depth: 57 ft / 32 ft
Foundation: Basement, Crawl Space, Walk-out Basement
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
© copyright by designer

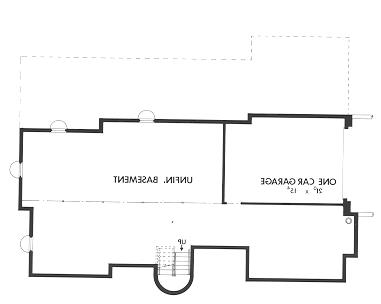

Basement Floor Plan:
Basement Floor Plan
Similar plans: HFL-1750-IR, 8047, HFL-1150-BE, 98266
Add to Favorites
Purchase Plans
House Plan Pricing
$785.00
$1,040.00
$1,150.00
$1,225.00
More details about our plan packages
Foundation Options
$0.00
$150.00
$175.00
Additional Plan Options
$50.00
$85.00
$150.00
$250.00
Plan Details
General House Information
1.5
Number of Stories:
57' 9"
Width:
32' 4"
Depth:
Single
Dwelling Number:
Exterior Style
Vacation
Contemporary
Modern
Facade
Owner's Choice
OwnersChoice
Number of Rooms
4
Bedrooms:
2
Full Baths:
Finished Square Footage
1,560 Sq. Ft.
Main Level:
485 Sq. Ft.
Upper Level:
2,045 Sq. Ft.
Total:
GARAGE
Under
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Walk-out Basement
House And Ceiling Heights
8'-1"
First Floor Ceiling:
7'-6"
Second Floor Ceiling:
28' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
4-1/2: 12
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
Number of Rooms
4
Bedrooms:
2
Full Baths:
Key Features
• 4 Bedrooms
• Attached
• Basement
• Crawlspace
• Deck
• Drive-under
• Fireplace
• Great Room
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Upstairs
• Skylights
• Split Master / Secondary Bedrooms
• Vaulted Ceilings
• Vaulted Foyer
• Walkout Basement
