Plan: 8487 SIERRA

Details |  Save | See Reverse | 3D | Modify | Back to Search

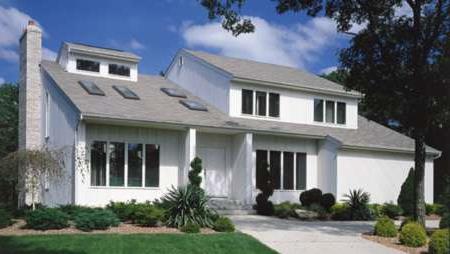

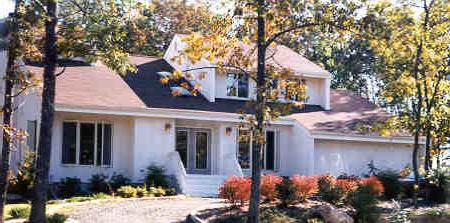

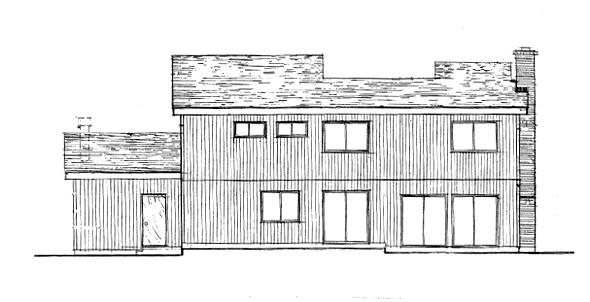

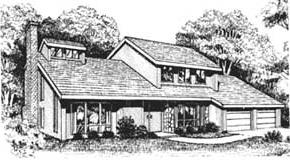

Front Photo #1 Front Rendering Rear Elevation Front Photo #2 Foyer First Floor Plan Second Floor Plan
See all 7 photos and rear view
Photographs may reflect modified homes
© copyright by designer
Plan Specification
Total Square Footage: 2,154
Main Level: 1,289
Second Level: 865
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 57 ft / 37 ft
Foundation: Basement, Crawl Space, Slab Foundation
View typical construction drawing >
© copyright by designer

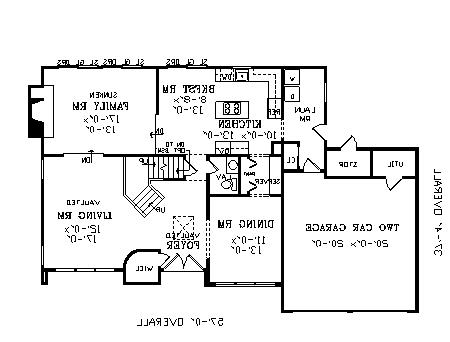

First Floor Plan:
First Floor Plan
© copyright by designer

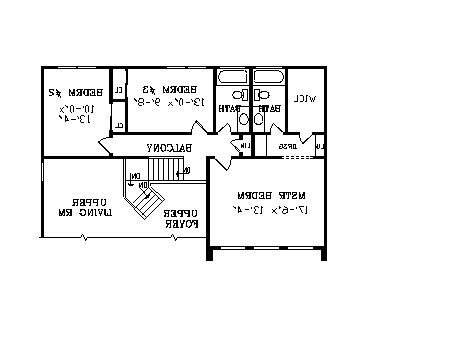

Second Floor Plan:
Second Floor Plan
Similar plans: 8922, 8051
Add to Favorites
Purchase Plans
House Plan Pricing
$805.00
$1,040.00
$1,150.00
$1,225.00
More details about our plan packages
Foundation Options
$0.00
$0.00
$150.00
Additional Plan Options
$50.00
$95.00
$250.00
$150.00
Plan Details
General House Information
2
Number of Stories:
57' 0"
Width:
37' 4"
Depth:
Single
Dwelling Number:
Exterior Style
Contemporary
Modern
Facade
Owner's Choice
OwnersChoice
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,289 Sq. Ft.
Main Level:
865 Sq. Ft.
Upper Level:
2,154 Sq. Ft.
Total:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab Foundation
House And Ceiling Heights
8'-1"
First Floor Ceiling:
8'-1"
Second Floor Ceiling:
24' 10"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
5-1/2: 12
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Crawlspace
• Dining Room
• Fireplace
• Formal Dining Room
• Front-entry
• Kitchen Island
• Master Suite
• Powder Room
• Separate Living / Family Room
• Slab
• Storage Space
• Vaulted Ceilings
• Vaulted Foyer
• Vaulted Living Room
