Plan: 4714 DELAFIELD II

Details |  Save | See Reverse | 3D | Modify | Back to Search

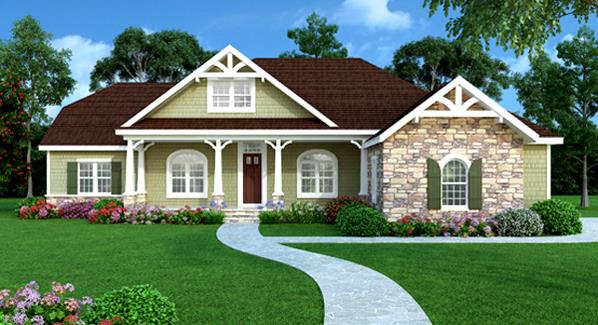

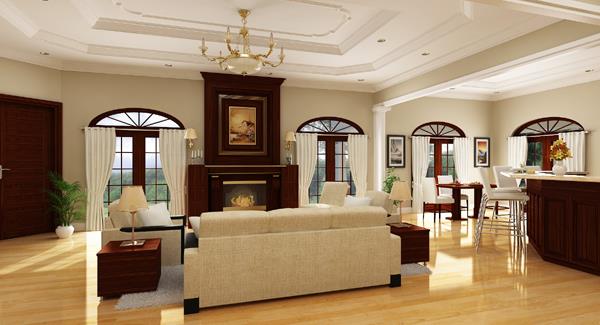

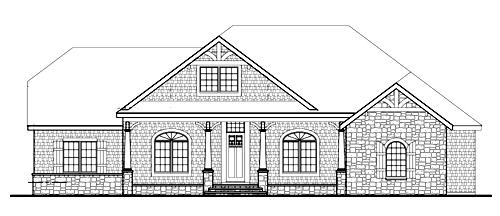

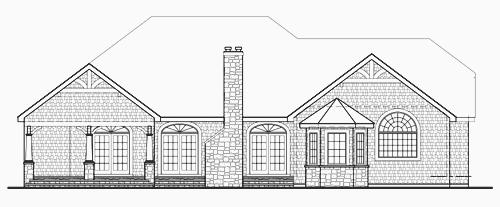

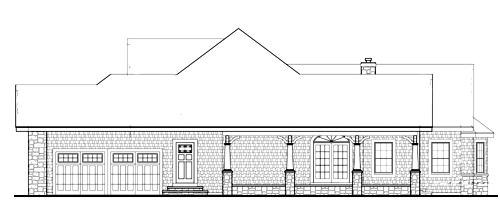

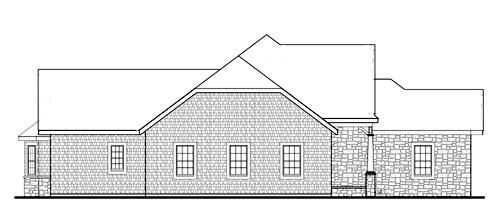

Front Rendering Rear Elevation Great Room Left Side Elevation Right Side Front Elevation First Floor Plan Optional 3rd Bath Plan Rear Rendering Bonus Second Floor Plan
See all 10 photos and rear view
Photographs may reflect modified homes
© copyright by designer
Plan Specification
Total Square Footage: 2,498
Main Level: 2,498
Bonus: 492
Bedrooms: 3
Baths: 3 Half: 0
Garages: 3
Width/Depth: 71 ft / 85 ft
Foundation: Basement, Crawl Space, Slab Foundation
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Optional 3rd Bath Plan:
Optional 3rd Bath Plan
© copyright by designer

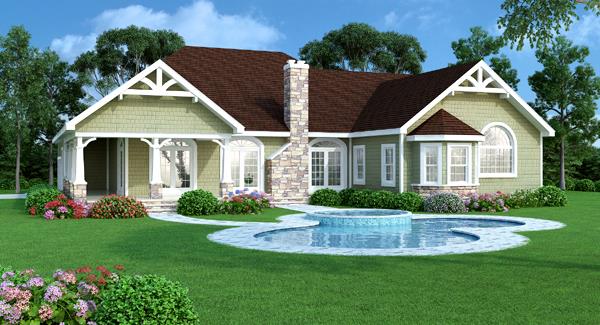

Rear Rendering:
Rear Rendering
© copyright by designer
Bonus Second Floor Plan:
Bonus Second Floor Plan
Similar plans: 1201, 1202, 2301, 93305
Add to Favorites
Purchase Plans
House Plan Pricing
$875.00
$1,155.00
$1,265.00
$1,340.00
$2,145.00
More details about our plan packages
Foundation Options
$0.00
$0.00
$150.00
Additional Plan Options
$50.00
$150.00
$350.00
$250.00
$150.00
Plan Details
General House Information
1
Number of Stories:
71' 2"
Width:
85' 2"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
Cottage
Craftsman
Ranch
Facade
OwnersChoice
Number of Rooms
3
Bedrooms:
3
Full Baths:
Finished Square Footage
2,498 Sq. Ft.
Main Level:
2,498 Sq. Ft.
Total:
Unfinished Square Footage
684 Sq. Ft.
Garage:
264 Sq. Ft.
Porch:
377 Sq. Ft.
Deck:
492 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Foundation
Basement
Crawl Space
Slab Foundation
House And Ceiling Heights
9-0
First Floor Ceiling:
8-1
Second Floor Ceiling:
27' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
Roof Load
20
Live:
10
Dead:
90
Wind:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
3
Full Baths:
Key Features
• Attached
• Basement
• Bonus Room
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Fireplace
• Foyer
• Great Room
• Guest Suite
• Laundry 1st Fl
• Master Bdrm Main Floor
• Mud Room
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Separate Tub and Shower
• Sitting Area
• Slab
• Split Bedrooms
• Storage Space
• Unfinished Space
• Vaulted Ceilings
• Walk-in Closet
• Walk-in Pantry
• Workshop
• Wraparound Porch
